Công cụ Crimping thủy lực
Created with Pixso. Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min

Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min

Tên thương hiệu: XINYA
Số mô hình: JYB-80-2Q
MOQ: 1
giá bán: $900-1,000
Thông tin chi tiết
Nguồn gốc:
Jiangsu, Trung Quốc
Áp lực định mức:
80 MPa
Cân nặng:
60 kg
Dòng chảy định mức:
1.6 L/phút
Áp lực tối đa:
85 MPa
Khối lượng bể:
8 L
Động cơ năng lượng:
5,5 HP
Mô hình động cơ:
Honda GX160
Loại nhiên liệu:
Xăng
Đột quỵ:
4 cú đánh
Loại xi lanh:
Xi lanh đơn
Phong cách làm mát:
Làm mát bằng không khí
Hệ thống khởi đầu:
Khởi động khóa/Khóa điện
Dịch chuyển:
250cc
Áp suất đầu ra tối đa:
100 MPa
Cấu trúc bơm:
Bơm pít tông
Làm nổi bật:

Honda 5.5HP hydraulic power unit

,

80MPa hydraulic crimping tool

,

1.6L/min hydraulic power unit

Mô tả sản phẩm

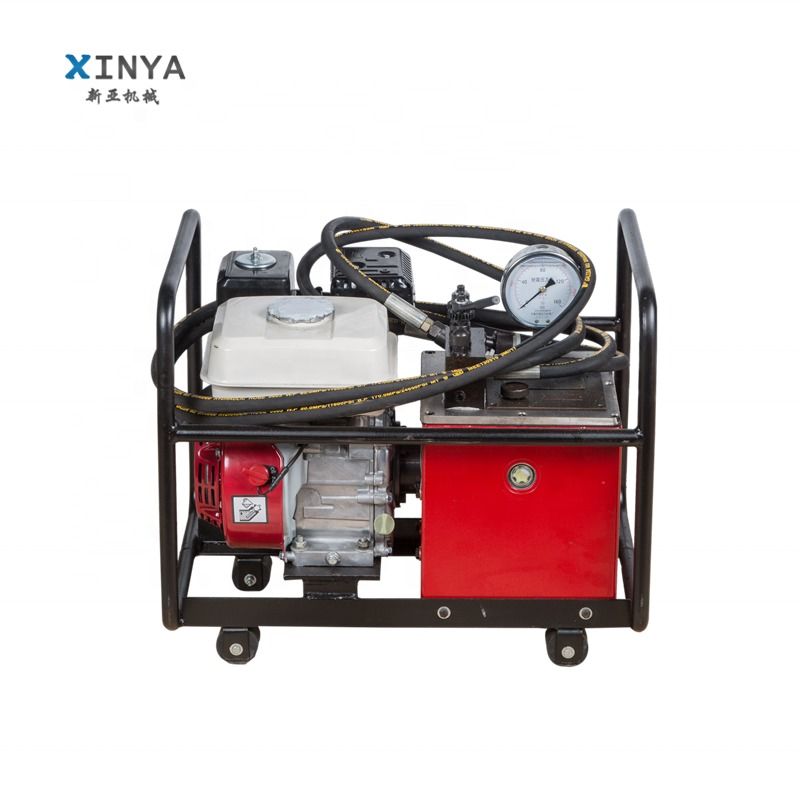

Hydraulic Power Unit with HONDA Gasoline Engine 5.5HP
Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 0 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 1 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 2
Application

This Yamaha Hydraulic Pump provides power for cutting tools, hydraulic compressors, punching machines, and other construction machinery. Ideal for field operations in electric power, railway, rescue, construction, and related industries.

Specifications
  • Fuel: Gasoline
  • Stroke: 4 stroke
  • Cylinder: Single Cylinder
  • Cooling Style: Air-cooled
  • Start: Kick Start
  • Displacement: 250cc
  • Starting System: Recoil/Electric Key start
Features
  • Easy to operate with high safety standards
  • Precision machining technique
  • Extended machine lifespan
  • Elegant and functional design
  • Wide application scope
  • Reliable performance with minimal malfunctions
Technical Data
Model No. JYB100Q
Max Pressure 85MPa
Rated Pressure 80MPa
Rated Flow 1.6L/min
Engine Honda Gasoline Engine GX160 5.5HP
Oil Tank 8L
Weight 60KG
Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 3 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 4 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 5 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 6 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 7
