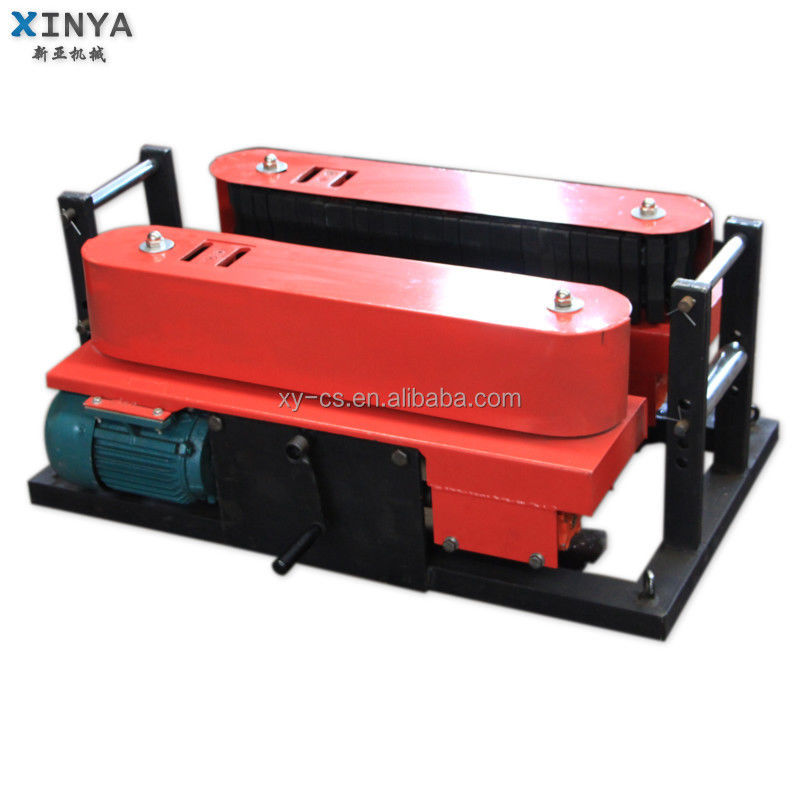

DSJ-150 Cable Hauling Machine for 30-180mm Power Cables

Brand Name:	XINYA
Model Number:	DSJ180/150
MOQ:	2
giá bán:	$1,200-1,400

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Cable diameter:

30-180mm

Electric motor:

1.1KW * 2

Pulling speed:

8 m/min

Pulling force:

700 KGS

Dimensions:

950*500*400 mm

Weight:

150 KG

Transmission ratio:

I=45

Rubber sheet thickness:

25mm

Model type:

DSJ-150

Line pulling:

700 KGS

Motor power:

1.1KW * 2

Oversize dimension:

950*500*400 mm

Cable range:

Φ30 - 180 mm

Pulling capacity:

700 KGS

Speed:

8 m/min

Làm nổi bật:

DSJ-150 cable hauling machine

power cable winch puller

30-180mm cable hauling equipment

Product Description

DSJ-150 Electrical Cable Laying Equipment for 30-180mm Cable Hauling

Product Specifications

Warranty	1 year
Customized Support	OEM
Application	Power Construction
Dimensions	950×500×400 mm
Weight	150 KG
Cable Diameter Range	30-180mm
Electric Motor	1.1KW × 2
Pulling Speed	8 m/min
Pulling Capacity	700 KGS

Product Description

The DSJ-150 Electrical Cable Laying Equipment is designed for efficient 30-180mm cable hauling in various industrial applications.

Applications

This cable hauling machine is ideal for power transmission projects, petroleum, chemical industries, industrial construction, power plant extensions, substations, and city network transmission. It works effectively with cable trays in channels, pipes, and can handle various power and control cables.

Technical Specifications

Model Type	DSJ-150	DSJ-180
Line Pulling (KGS)	700	900
Pulling Speed (m/min)	8	6
Electric Motor	1.1KW × 2	1.5KW × 2
Dimensions	950×500×400 mm	1020×590×400 mm
Weight (KGS)	150	180-200
Cable Diameter	Φ30 - 180 mm	Φ30 - 200 mm
Transmission	I=45	I=60
Rubber Sheet Thickness	25mm	25mm
